Docol 500DP: Docol 500DP dual-phase steel has good formability and weldability and is suitable for automotive safety components such as reinforcements. This steel is subjected to a special heat treatment, which mainly produces a two-phase structure. Ferrite, which can impart formability, represents one phase, while martensite, which is responsible for strength, represents the other phase.
+8618961527037
+8618961527037
+8618961527037
sales@steeljingye.com
Contact Us

◉ Product Description

Docol 500DP: Docol 500DP dual-phase steel has good formability and weldability and is suitable for automotive safety components such as reinforcements. This steel is subjected to a special heat treatment, which mainly produces a two-phase structure. Ferrite, which can impart formability, represents one phase, while martensite, which is responsible for strength, represents the other phase. Bainite may also be present as a complementary phase.



Mechanical Properties

Steel GradeStandardPlatingTest DirectionYield Strength Rp0.2 (MPa)Tensile Strength Rm (MPa)Extension Rate A80( min%)Minimum Bend Inner Diameter for 90 ° Bend
Docol CR290Y490T-DPVDA239- 100:2016UC, GI, GA*, FRL290-380490-60024UC 0.0xtGI, GA, FI0.5xt
Docol CR230Y500T- DLSSABUCT230-300500-600240.0xt
Docol CR290Y500T- DPSSABUCT290-370500-600200.0xt



Chemical Composition

Steel GradePlatingC (max %)Si (max %)Mn(max %)P (max %)S(max %)Al( %)Cr Mo(max%)B(max %)Nb Title(max %)
Docol CR290Y490T-DPUC0.100.501.000.0250.0100.015--0.10-
Docol CR290Y490T-DPGI,GA,ZA0.140.501.800.0500.0100.015-1.01.000.150.005
Docol CR230Y500T- DLUC0.080.401.800.0250.0100.015--0.10-
Docol CR290Y500T- DPUC0.100.501.000.0250.0100.015--0.10-



Plating

Plating TypePlating GradeStandardSingle-sided coating quality, single-point test (g/m2)Single side thickness, for reference only(μm)
GI40/40VDA239-10040-605.6-8.5
GI50/50VDA239-10050-707.0-9.9
GI60/60VDA239-10060-908.5-12.7
GI70/70VDA239-10070-1009.9-14.1
GI85/85VDA239-10085-11512.0-16.2
GI115/115VDA239-100115-15516.2-21.8
GA40/40VDA239-10040-605.6-8.5
GA50/50VDA239-10050-807.0-11.3
ZA95As required
7-
ZA130As required
10-

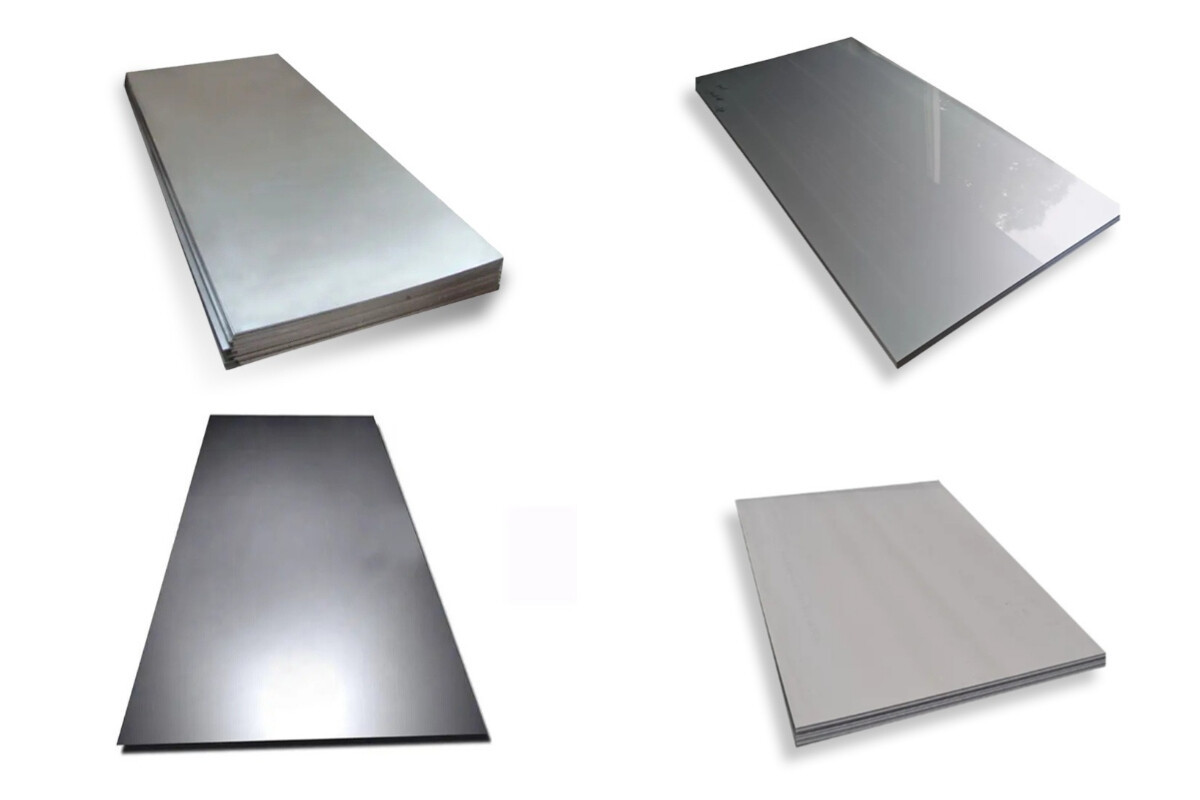

◉ Product Show

下载 (1).jpg


◉ Application

下载 (8).jpg


◉ Product Packaging

板 (6).jpg
